BYOE: Bring Your Own Electrodes

Visualize electrode coordinates and values using CSV tables - no coding required!

3D Viewer
Author
Affiliation

Zhengjia Wang

Dept. of Neurosurgery, University of Pennsylvania

Published

May 8, 2026

Instructions

1. Drag & drop electrode coordinates

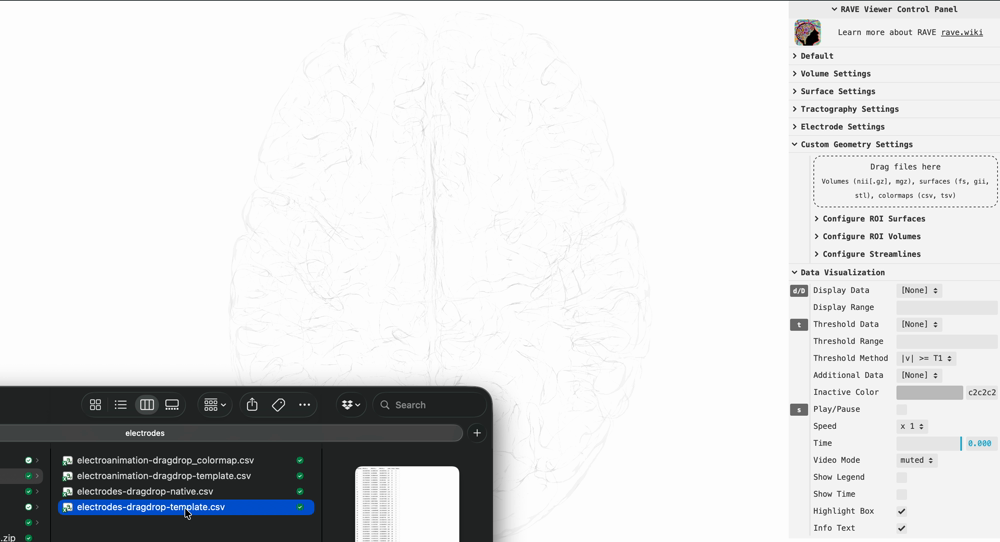

Prepare a CSV file containing electrode coordinates and drop it into the viewer as shown above. An example file electrodes/electrodes-dragdrop-template.csv is included in the downloaded zip.

The CSV must contain the following columns (column names are case-sensitive):

Electrode MNI152_x MNI152_y MNI152_z Label
1 -28.23 15.38 -39.43 LI1
2 -33.50 16.10 -36.69 LI2
… … … … …
  • Electrode (required): integer electrode channel number
  • MNI152_x, MNI152_y, MNI152_z (required): electrode position in MNI152 space (mm)
  • Label (required): text label displayed next to the electrode sphere
  • Group (optional): group name; electrodes sharing the same group are rendered in the same color
  • Radius (optional): sphere radius in mm (default: 1)

After dropping the file the electrodes appear in the viewer. To remove them, expand the control panel > Electrode Settings > Clear Uploaded Electrodes.

Note

For a native-subject viewer, replace MNI152_x / MNI152_y / MNI152_z with T1R / T1A / T1S (subject-native coordinates). All other columns remain the same. An example is provided in electrodes/electrodes-dragdrop-native.csv.

2. Set electrode values

Once electrodes are visible in the viewer you can color them by any numeric or categorical variable. Prepare a second CSV — an example is provided in electrodes/electroanimation-dragdrop-template.csv — and drop it into the viewer.

The value CSV must contain at least an Electrode column plus one or more value columns:

Electrode Power Cluster
1 1.92 A
2 0.98 B
… … …
  • Electrode (required): must match the channel numbers in the coordinate file
  • Time (optional): numeric time-point in seconds; when present the viewer animates the values over time
  • Value columns (at least one required): any name you choose (e.g. Power, Cluster, BetaBand)
    • Numerical values are displayed on a continuous color scale
    • Categorical values must be non-numeric strings (use "A", "B", "C" rather than 1, 2, 3)

After dropping the file, expand the control panel > Electrode Settings > Display Data, or use the keyboard shortcut D to select which variable to display.

3. Customize the color map

Note

Complete steps 1 and 2 before attempting this step.

To override the default colors, create a colormap CSV whose file name is the value CSV name with _colormap appended before the .csv extension — for example if the value file is my_values.csv, name the colormap file my_values_colormap.csv.

  • Column names must match the value column names from the value CSV (e.g. Power, Cluster)
  • Each row contains one key color (hex code such as #2166ac, or an HTML color name such as red) per column
Power Cluster
aliceblue #e41a1c
#f7f7f7 #377eb8
purple #4daf4a
#7d7f4a
  • For continuous variables the listed colors are treated as key stops and automatically interpolated across the full value range
  • For categorical variables each row corresponds to one category in alphabetical order (first row → first category, second row → second category, …); unused rows are ignored

Drop the colormap CSV into the viewer the same way as the value CSV. The electrode colors update immediately.
